Water glue lamination machine

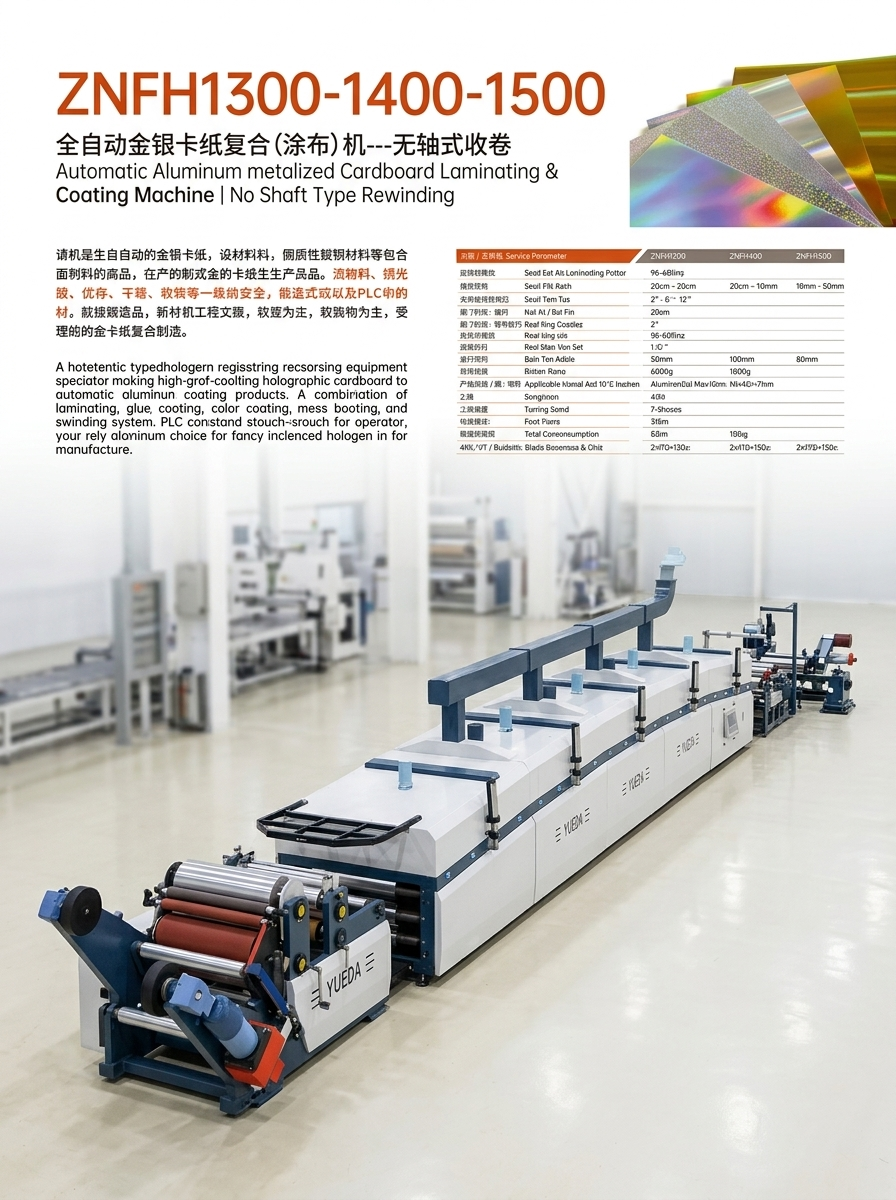

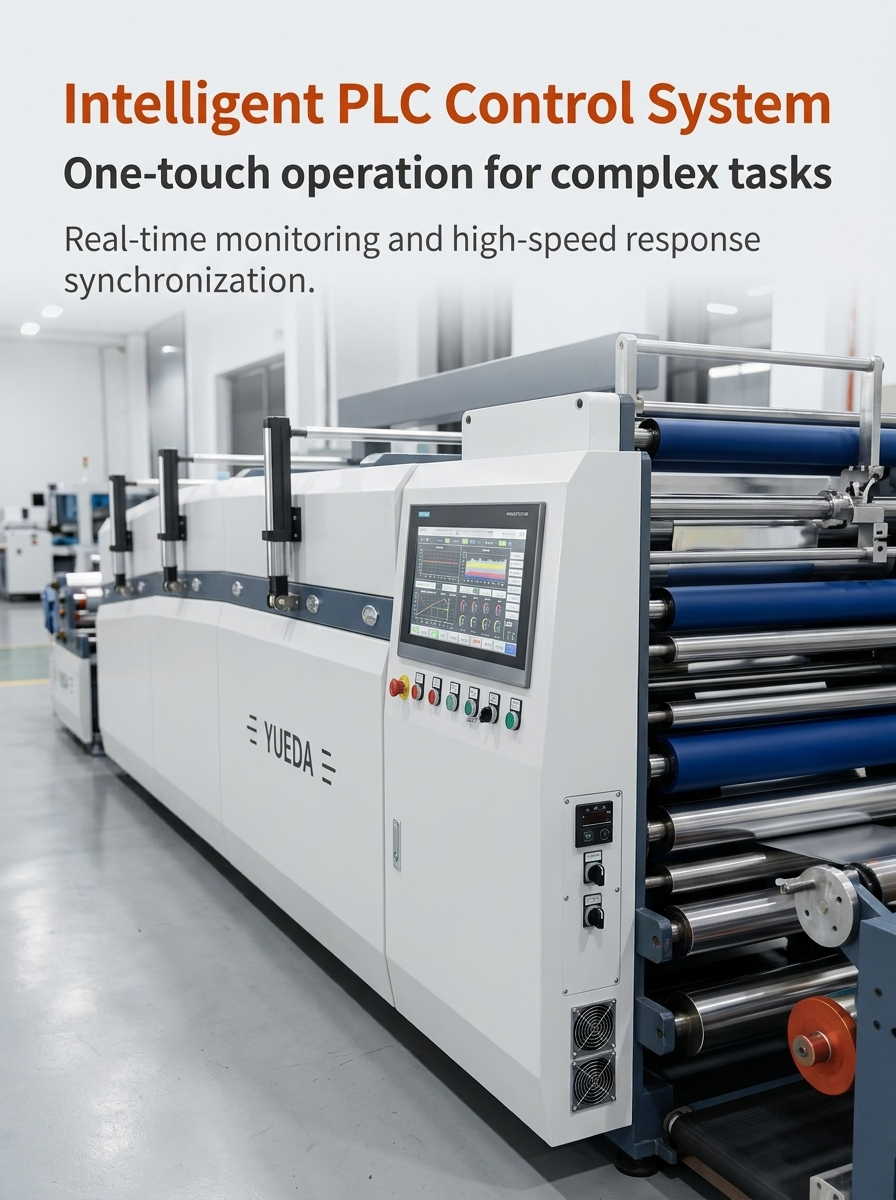

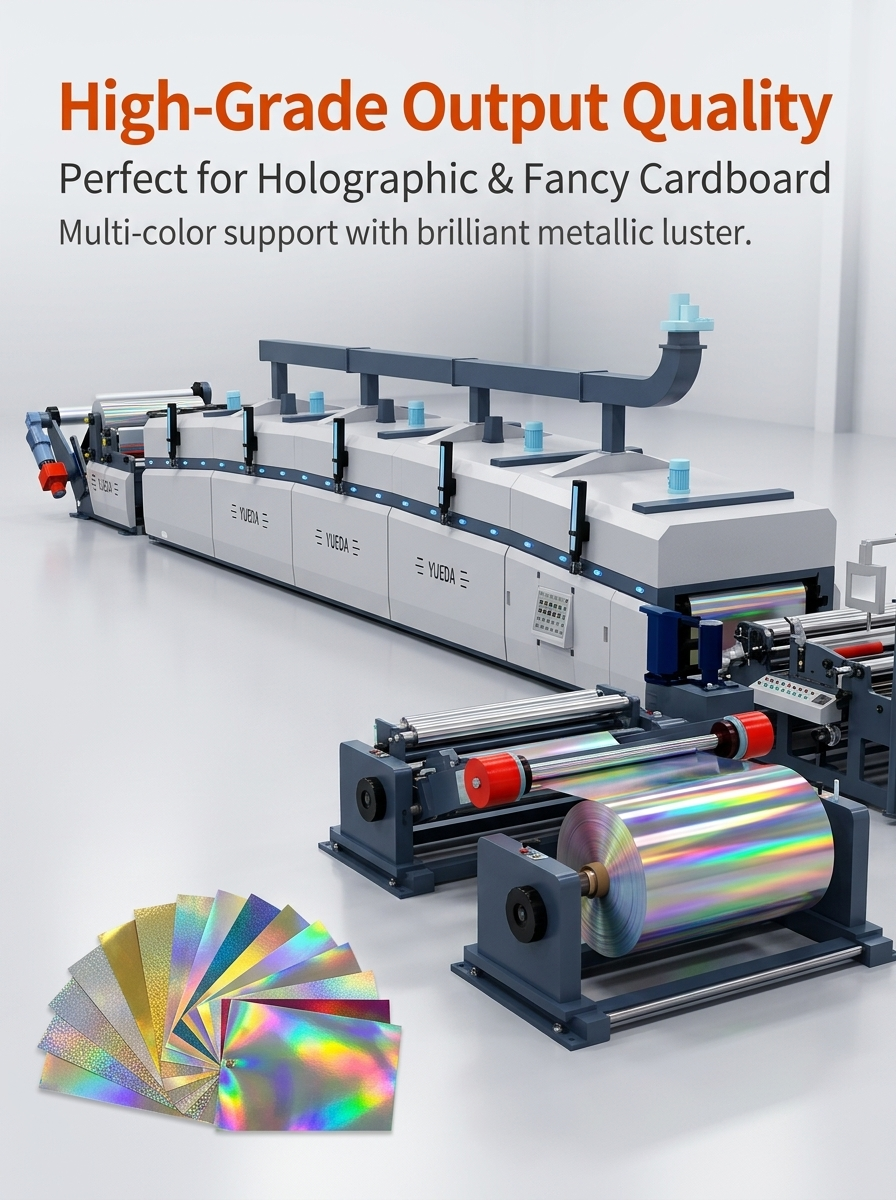

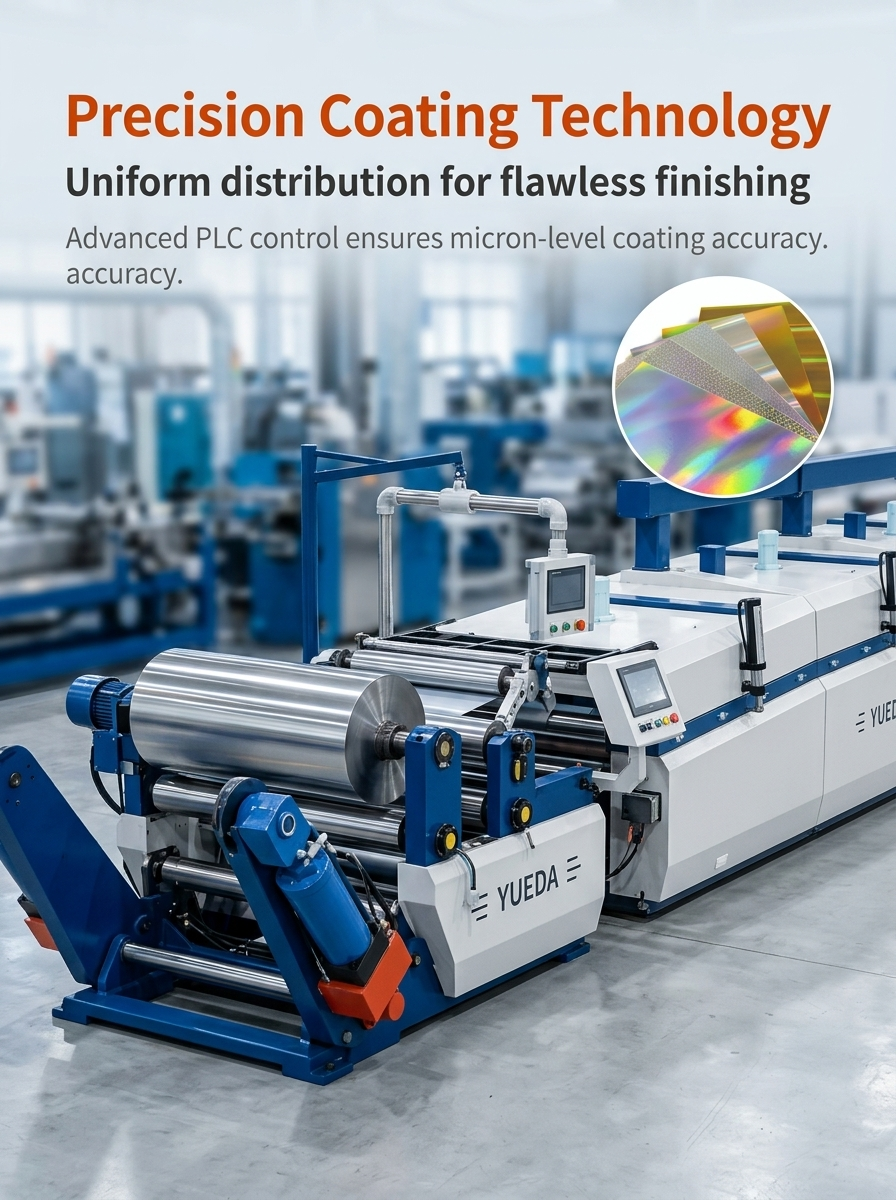

The ZNFH1300/1400/1500 Automatic Aluminum Metallized Cardboard Laminating & Coating Machine is designed for gold/silver cardboard, holographic materials and tobacco/alcohol packaging. It integrates unwinding, gluing, coating, drying and shaftless rewinding, with PLC control and touchscreen operation.

chia sẻ：

Liên hệ với chúng tôi

Yêu cầu trực tuyến

Whatsapp：8613738772345

Giới thiệu chi tiết

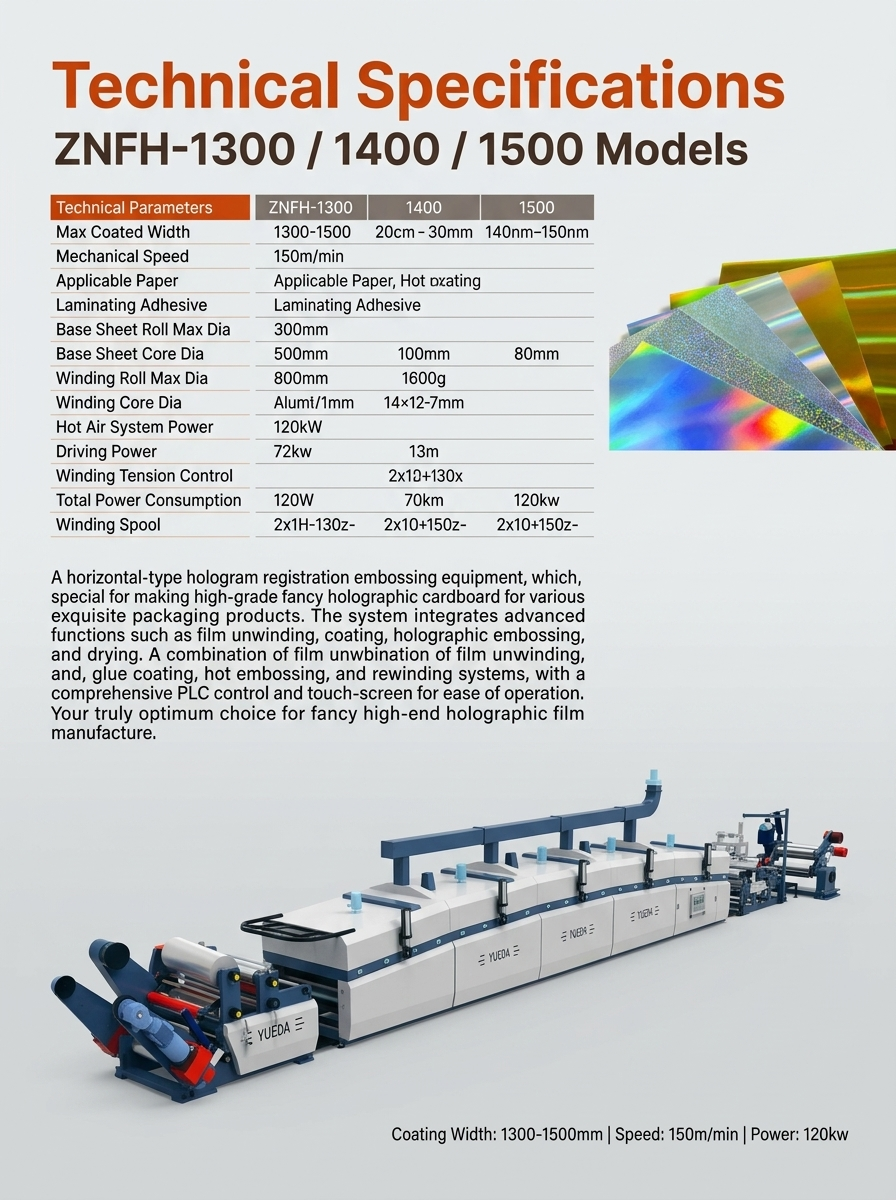

Parameter	ZNFH1300	ZNFH1400	ZNFH1500
Sheet Roll Dia. (Unwinding)	100–1600mm	100–1600mm	100–1600mm
Sheet Roll Width	600–1200mm	700–1300mm	700–1400mm
Sheet Core Size	3", 6", 12"	3", 6", 12"	3", 6", 12"
Film/Foil Roll Dia.	600mm	600mm	600mm
Rewinding Dia.	100–1600mm	100–1600mm	100–1600mm
Rewinding Core Size	6–12"	6–12"	6–12"
Roller Face Width	1300mm	1400mm	1500mm
Suitable Paper	40–450g/m²	40–450g/m²	40–450g/m²
Applicable Aluminum Foil	0.006–0.01mm	0.006–0.01mm	0.006–0.01mm
Applicable Film	0.01–0.1mm	0.01–0.1mm	0.01–0.1mm
Drying Path	12.5m	12.5m	12.5m
Running Speed	5–150m/min	5–150m/min	5–150m/min
Total Power Consumption	121kW	129kW	/
Machine Dimension (L×W×H)	21m × 2m × 3.2m	21m × 3.1m × 3.2m	21m × 3.2m × 3.2m
