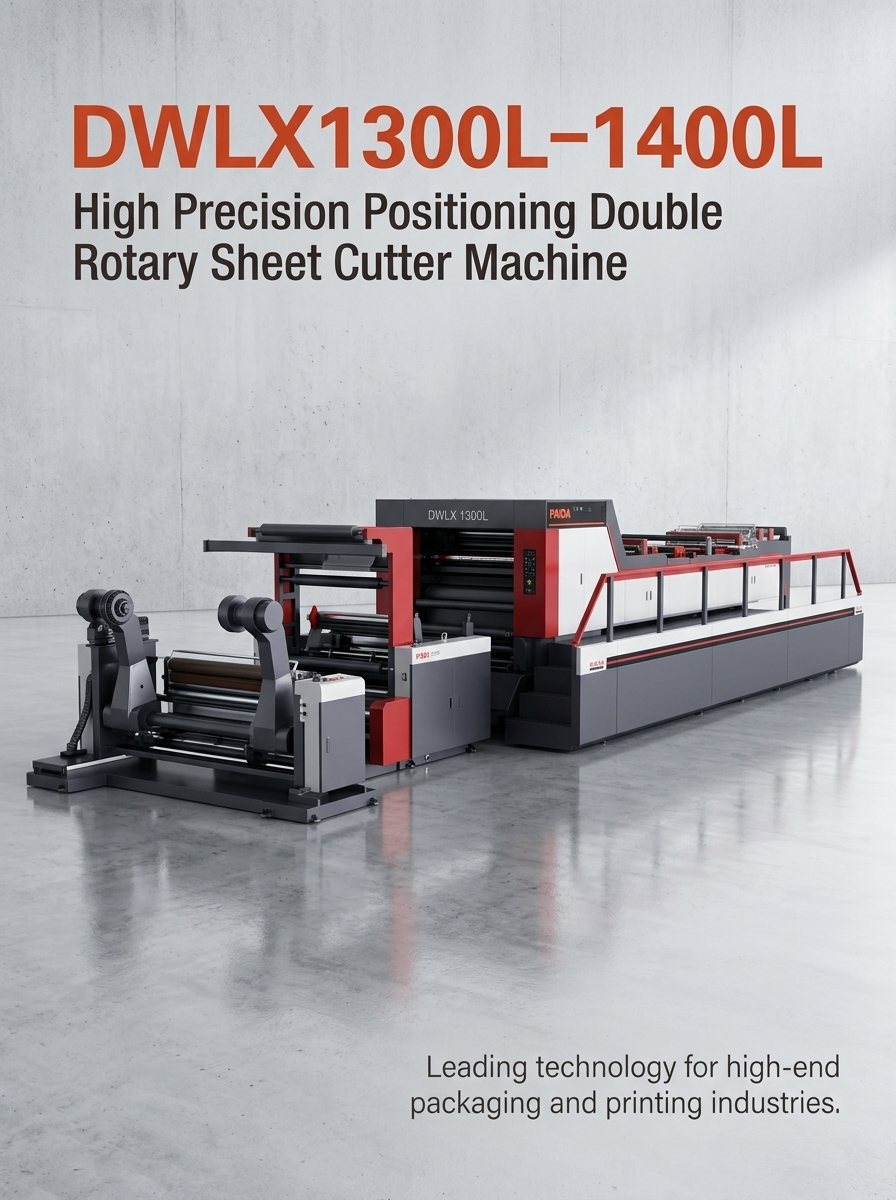

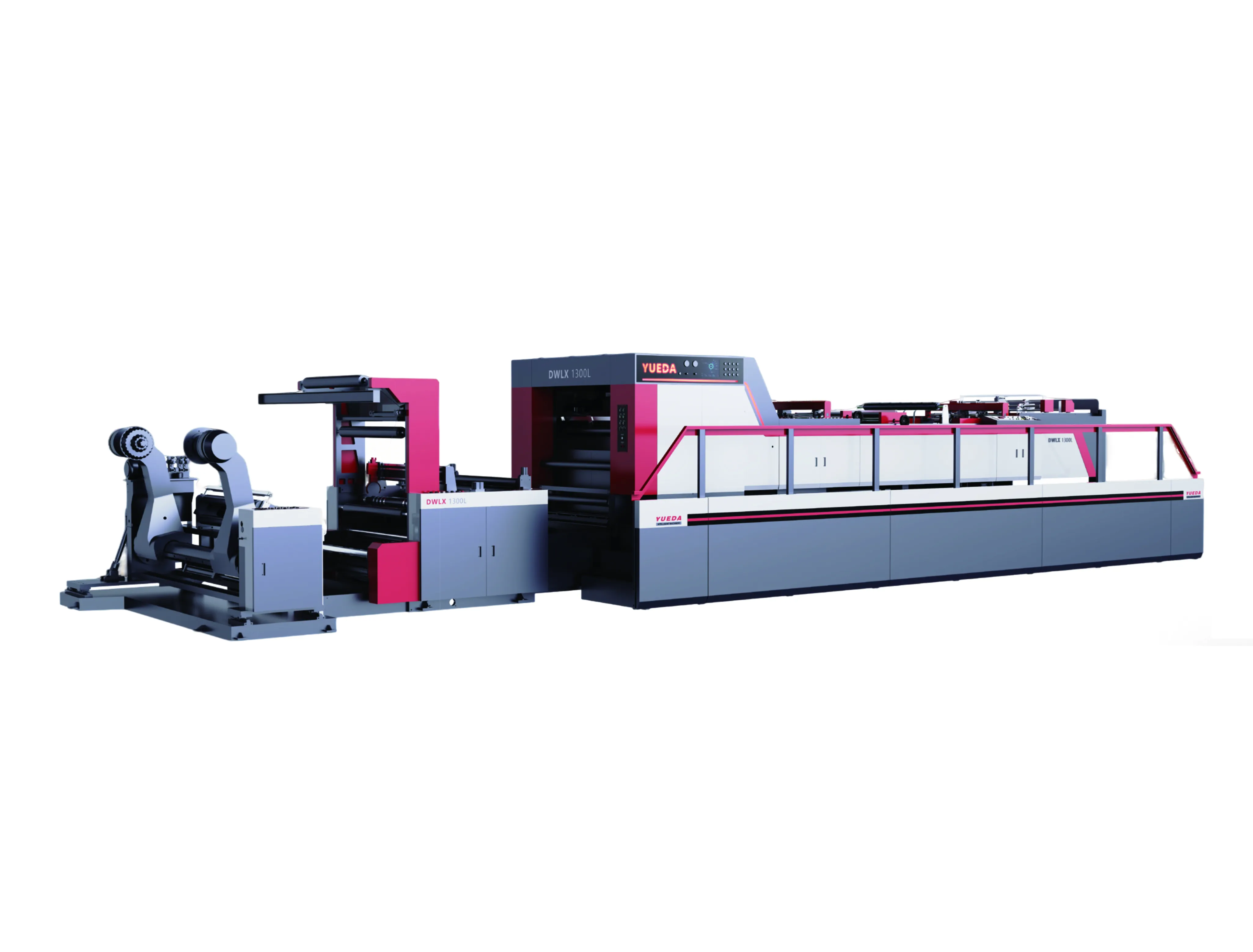

Double Rotary Sheet Cutter Machine

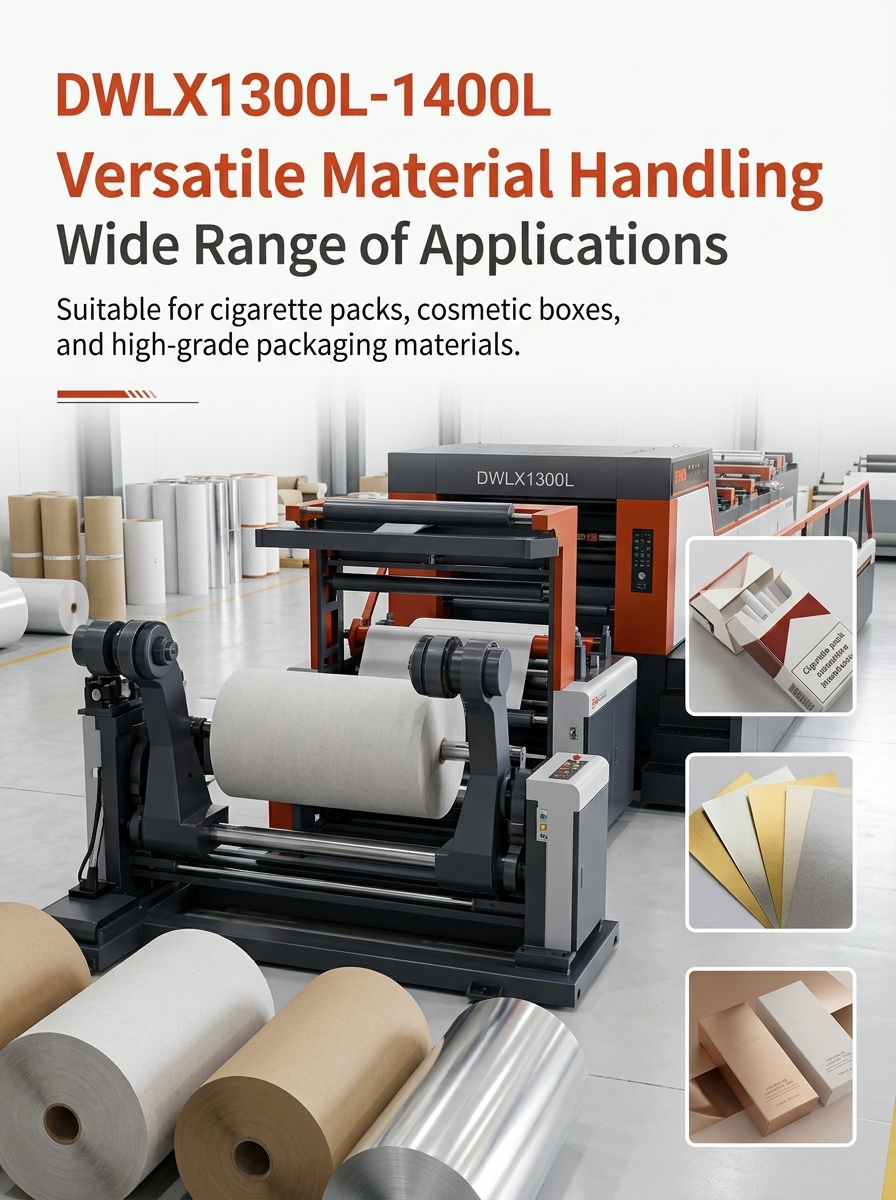

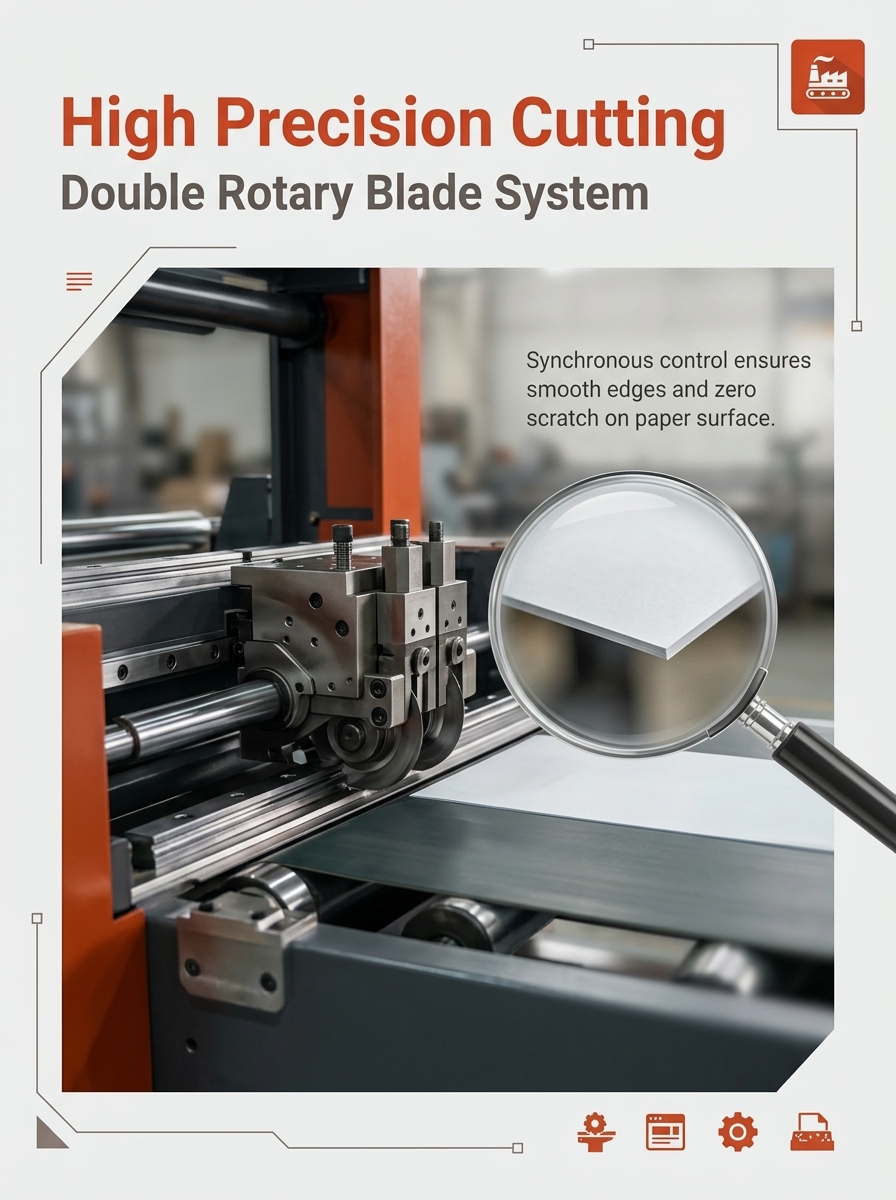

The DWLX1300L/1400L High Precision Positioning Double Rotary Sheet Cutter is designed for high-grade packaging materials like cat-eye positioning cardboard, cigarette packet cardboard and aluminum foil cardboard. With double rotary screw knives, ±0.1mm blank cutting accuracy and German imported photoelectric detection, it delivers scratch-free cutting with minimal paper dust, no trimming needed, and stable automated operation.

chia sẻ：

Liên hệ với chúng tôi

Yêu cầu trực tuyến

Whatsapp：8613738772345

Giới thiệu chi tiết

Item	DWLX1400L	DWLX1300L
Cutting Type	Double cyclotron screw knife (up & down)	Double cyclotron screw knife (up & down)
Max Unwinding Diameter	≤Φ1650mm	≤Φ1650mm
Feeding Paper Tube Diameter	3", 6", 12"	3", 6", 12"
Material Width	400–1400mm	400–1250mm
Stacking Height	1500mm	1500mm
Stack Weight	2000KG	2000KG
Cut Length	450–1400mm	450–1400mm
Blank Cutting Accuracy	±0.1mm	±0.1mm
Longitudinal & Transverse Tracking Accuracy	±0.1mm	±0.1mm
Operating Speed	≤300m/min	≤300m/min
Cutting Speed	10–400 sheets/min	10–400 sheets/min
Barometric Demand	0.8MPa	0.8MPa
Power Supply	AC380V / 50Hz	AC380V / 50Hz
Total Power	100KW	100KW
Total Weight	17000KG	15800KG
Overall Dimensions (L×W×H)	13.85×4.52×2.64m	13.85×4.37×2.64m
Cutter Load	≤550g/m² (subject to density and quality)	≤550g/m² (subject to density and quality)
